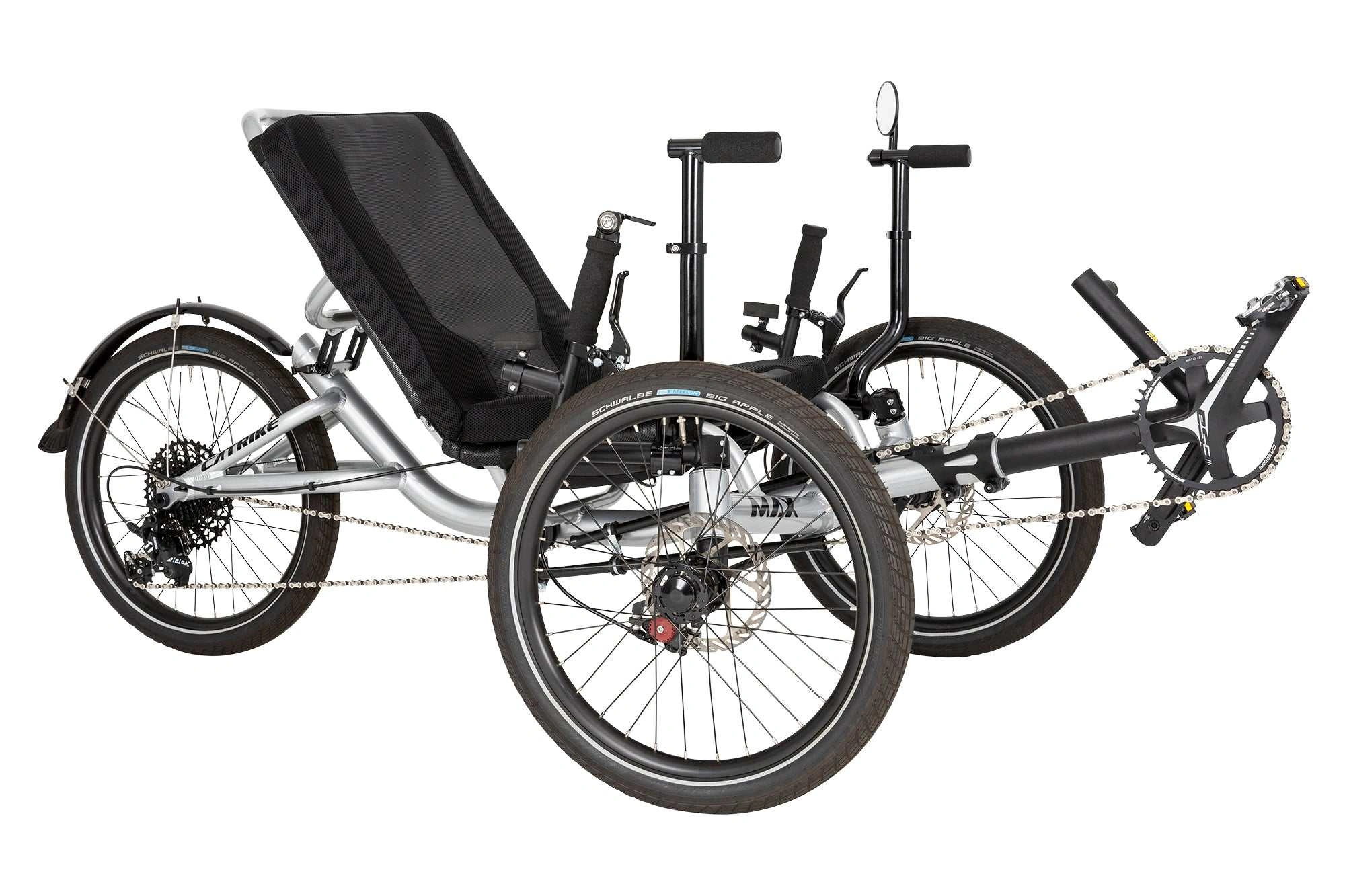

The all-new MAX offers a higher/wider seat and incorporates a larger diameter Cross-Member and wide sturdy rims to accommodate 425 lbs of rider and gear weight. In addition, it is equipped with Schwalbe Big Apple tires, 1x11 SRAM drive train and the new Catrike Assist Bars that help support the rider when getting in and out of the seat. It is the most robust model in our line and has all the features you have come to expect on a Catrike: Avid disc brakes, signature hand rest, Catrike Peace Boom, adjustable seat angle, locking brake levers and Ackerman Steering. Enjoy fun, adventures and freedom aboard the Catrike MAX!
The Catrike MAX ships in 1-2 weeks after we receive the order.
We charge a flat rate of $369 for shipping via freight in most of the Continental US. We do not ship Catrikes outside of the US. There are few zip codes in the US that are more expensive - we will reach out to discuss if this is an issue. It’s usually the very rural locations.
The bike comes 100% fully assembled. We require that all shipped Catrikes are ordered with a boom adjust kit so you just adjust the boom to the proper length, adjust the seat and handlebars to your liking and go for a ride! If you order additional parts with the bike, our website may charge you additional shipping. When we receive the order, we will refund that amount.
A final note about ordering bikes on our website: We will always call you after you place your order to discuss your build, make sure all of the options are correct and ensure that it is the right bike for you. If we need to make changes, additions or cancellations, we will happily do that - we want to make sure you are happy with your new bike. We will NEVER just ship out a bike without a conversation.
Frame & Geometry
US metric
Wheel Base 40 in 1880 mm
Wheel Track 34 in 864 mm
Total Width 37.25 in 946 mm
Total Length** 74 in 1879 mm
Seat Angle 47/57 deg
Weight 40 lb 18 Kg
Seat Height 14.25 in 362 mm
Seat Width 16 in 406 mm
BB Height** 16.25 in 414 mm
Ground Clearance 6 in 152 mm
Total Height 32.25 in 819 mm
Height w/ Seat Folded 25.25in 641 mm
Turning Circle 14.5 ft 4.4 m
Turning Radius 7.25 ft 2.2 m
Rider Weight Limit*** 425 lb 193 Kg
Rider X-Seam Range 39/46 in 99/117cm
Components
Brakes Avid BB7 Disc Brakes
Brake Levers Catrike Locking Brake Levers
Front Derailleur N/A
Rear Derailleur SRAM APEX 11-Speed
Shifters SRAM 500 TT Bar End Shifter
Crankset FSA Omega Abs 165mm
Bottom Bracket FSA Road MegaExo
Chainrings FSA 42T
Chain Guard N/A
Cassette SRAM 11/42 11 Speed
Chain KMC e11
Idler TerraCycle Sport Power Idler 15T
Headsets FSA Zero Stack
Front Tires 406 Schwalbe Big Apple Performance 2.0
Rear Tire 406 Schwalbe Big Apple Performance 2.0
Standard Features
Rear Fender
Flag Mount & Flag
Mirrycle Rear View Mirror
Multi Purpose Clipless Pedals
Computer Sensor Mount
No Brake Steer
Self Centering Steering
Ackermann Steering Compensation
Structural Front Boom
Quick-Release Indexing Boom Clamp
Aluminum Rod Ends
Adjustable Assist Bars
12x142 Rear Thru Axle
20mm Front QR Thru Axle
